Auto electric coolant pump,engine water pump for BMW N55, OEM: 11517632426 11517588885 11517563659

Working voltage: 9V-16V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed:≥7000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Electric coolant pump,engine water pump for BMW N20 OEM: 11517597715

Working voltage: 9V-16V
Working current: ≥15A
Rated pressure: P≥0.45 bar
Rated flow: Q≥7000 L/H
Speed:≥5000 r/min
Working temperature: -40°C- 135C
Level of protection: IP67

Auto electric coolant pump,engine water pump for BMW N55, OEM: 11519455978

Working voltage: 9V-16V
Working current: ≥25A
Rated pressure: P≥0.5 bar
Rated flow: Q≥9000 L/H
Speed:≥5000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Electric coolant pump for BMW engine N20 OEM: 11517604027 11518635089 11518625097

Working voltage: 9V-16V
Working current: ≥15A
Rated pressure: P≥0.45 bar
Rated flow: Q≥7000 L/H
Speed:≥5000 r/min
Working temperature: -40°C- 135C
Level of protection: IP67

Long joint electric coolant pump for Mercedes engine M274 OEM: 2742000107

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Short joint electric coolant pump for Mercedes M274 OEM: 2742000207

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Electric coolant pump for Mercedes M264 OEM:2642000301 2642000100 26422009500

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Electric coolant pump for Mercedes Engine M274431 OEM:2742000407

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Electric coolant pump for Ford Mondeo, OEM: DS7E8C419CB DS7E8V419BA

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Electric coolant pump for Volvo OEM: 31368419 31368715

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥7000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

Electric purge Pump For VW OEM:4E.906.703.B

Working voltage: 9V-16 V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed: ≥6000 r/min
Working temperature: -40°C-135°C
Level of protection: IP67

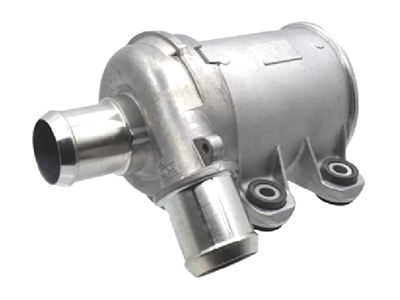

OEM:LX6Z8501

Working voltage: 9V-16V
Working current: ≥20A
Rated pressure: P≥0.5 bar
Rated flow: Q≥7000 L/H
Speed: ≥5000 r/min
Working temperature: -40°C-120°C
Level of protection: IP67

Heat management module for BMW engine B48 OEM: 11537644811

Working voltage: 9 V-16 V
Working current: ≥0.5A
Working temperature: -40°C-135°C
Level of protection: IP67

Heat management module for BMW engine B58 OEM: 11537642854

Working voltage: 9 V-16 V
Working current: ≥0.5A
Working temperature: -40°C-135°C
Level of protection: IP67

Engine Valvetronic Actuator Motor for BMW engine N20,N55,OEM:11377603979

Braking light switch(5S)

Clutch switch assy(5S)

Oil Pressure Sensor for Mercedes

Oil Pressure Sensor for Mercedes

Oil Pressure Sensor for Mercedes

Oil Pressure Sensor for Mercedes

Auto electric coolant pump,engine water pump for GM, OEM: 55508939 55510113 12724522

Working voltage: 9V-16V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed:≥6000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Auto electric coolant pump,engine water pump for GM, OEM: 55515684 12701669

Working voltage: 9V-16V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed:≥6000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Electric Air Pump For GM OEM: 12718569

I. Compatible Vehicles (OE: 12718569)

Applicable Brands:

Cadillac: XT4, XT5

Buick: Envision, Regal, LaCrosse, GL8, New Excelle GT, Trax, Encore, GL6, Orlando, Verano

Chevrolet: Malibu XL, etc.

Engine Type: Primarily compatible with GM's 1.0T, 1.3T, 2.0T, and other turbocharged engines.

II. Product Overview
The purge pump is a core component of the Evaporative Emission (EVAP) system. It directs fuel vapor adsorbed by the charcoal canister into the engine for combustion, preventing fuel vapor leakage and enhancing environmental performance. This product complies with the SAE J1930 standard and is suitable for multiple models within the General Motors group.

III. Technical Specifications

Item Parameter Detail
Operating Voltage DC 12V (±10%)
Rated Flow Rate ≥1.5 L/min (@50kPa)
Temperature Range -40℃ ~ 120℃
Port Size 6mm quick-connect fittings
Protection Rating IP67 (Dustproof and waterproof)
IV. Installation Steps

Preparation:

Turn OFF the ignition switch and disconnect the negative battery terminal.

Clean the charcoal canister and associated lines. Reverse blow treatment using a high-pressure air gun is recommended.

Removing the Old Pump:

Press the locking tab and disconnect the electrical connector.

Use a dedicated tool to release the line locking collar.

Installing the New Pump:

Connect the lines, aligning the arrow direction (pointing towards the engine side).

Ensure the three pressure equalization holes are unobstructed (to prevent pressure sensor false readings).

Startup Test:

After engine startup, the purge pump should run for approximately 5-10 seconds and then stop. If it runs continuously, check for line blockages.
V. Fault Handling

Code P1467: Check for kinked lines or a clogged charcoal canister.

Persistent Abnormal Noise: Requires pump replacement.

VI. Precautions

Strictly prohibited to initiate pump testing immediately after refueling the fuel tank.

Auto electric coolant pump,engine water pump for GM, OEM: 55508938，55510114

Working voltage: 9V-16V
Working current: ≥25A
Rated pressure: P≥0.8 bar
Rated flow: Q≥9000 L/H
Speed:≥6000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Auto electric coolant pump,engine water pump for TOYOTA, OEM: 161A0-29015 161A0-39015

Working voltage: 9V-16V
Working current: ≥10A
Rated pressure: P≥0.5 bar
Rated flow: Q≥3500 L/H
Speed:≥4000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Auto electric coolant pump,engine water pump for TOYOTA, OEM: 161A0-39025

Working voltage: 9V-16V
Working current: ≥10A
Rated pressure: P≥0.5 bar
Rated flow: Q≥3500 L/H
Speed:≥4000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Auto electric coolant pump,engine water pump for HONDA, OEM: 19200-5K0A01

Working voltage: 9V-16V
Working current: ≥10A
Rated pressure: P≥0.5 bar
Rated flow: Q≥3500 L/H
Speed:≥4000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

Auto electric coolant pump,engine water pump for TOYOTA, OEM: 161A0-39035

Working voltage: 9V-16V
Working current: ≥10A
Rated pressure: P≥0.5 bar
Rated flow: Q≥3500 L/H
Speed:≥4000 r/min
Working temperature: -40°C- 135°C
Level of protection: IP67

BMW Fuel leakage diagnosis module

OSD-12V120

Thermal management systerms in new energy commercial vehicles,liquid-cooled energy storage stations etc.
Rate Voltage：DC12V

Rate Current： 20A

Rate Power： 240W

Speed： 5000±5%rpm

Working Voltage: DC8 ～ 16V

Working temperature. -40 -105°C

Coolant :Water/Glycol

Protection Level : IP67

Working Noise：≤55dB (lm)

Working Life： ≥20000h

Lift： 17.5±0.5m

Flow≥36L/min (lift:14±0.5m h）

Weight:2.35kg （with bracket）

OSD-24V240

Thermal management systerms in new energy commercial vehicles,liquid-cooled energy storage stations etc.
Rate Voltage：DC24V

Rate Current： 10A

Rate Power： 240W

Speed： 5000±5%rpm

Working Voltage: DC18 ～ 32V

Working temperature. -40 -105°C

Coolant :Water/Glycol

Protection Level : IP67

Working Noise：≤55dB (lm)

Working Life： ≥20000h

Lift： 22±0.5m

Flow≥38L/min (lift:20±0.5m h）

Weight:2.35kg （with bracket）
